Anti Deformation And Anti Cracking Fiberglass Geogrid Reinforced Geotextile

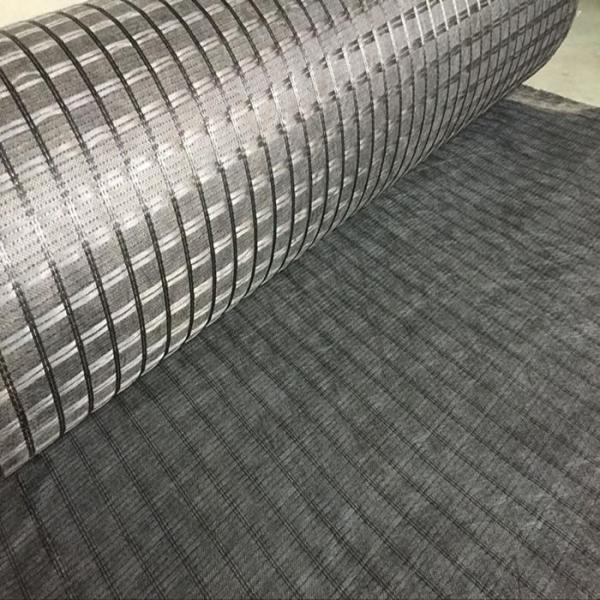

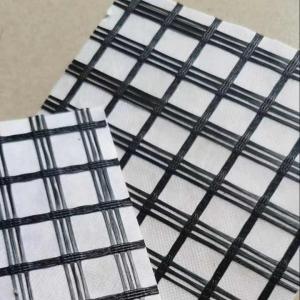

Fiberglass/polyester reinforcing geocomposite is the geocomposite which comprises a high-strength, low-strain reinforcement grid with extra aperture size and a flexible nonwoven fabric bonded to the upper face. The fiberglass/ polyester yarns with high tensile strength and low creep performs the function of reinforcement and the nonwoven performs the functions of separation, filtration and drainage.
| Product Name | Composite Fiberglass Geogrid |
| Tensile Strength | 50/50 100/100 120/120 kN/m |
| Mesh Size | 25.4x25.4, 12.7x12.7mm |
| Roll Width | 1.5/2/2.5/3.95/5.95 m |
| Roll Length | 50/100 m |
| Standard | ASTM, ISO, CE |
| Spec (Fiberglass Geogrid) | | | | | | | | |
| Mesh size (mm) | 25.4x25.4 or 12.5x12.5 or 50.8x50.8 |
Breaking strength ≥(kN/m) | | | | | | | | | |
| | | | | | | | | |
| | |
| | |
| Thernal tolerance(℃) | |
| Width≤(m) | |
| Nonwoven Geotextile | |
| Material | PP or PET |
| Mass per unit area | 20g---100g/㎡ |
| Roll Width | 3.95 /5.95 m |
| Roll Length | 50/100 m |
Fiberglass grid enhances geotextile effect
Fiberglass grid reinforced geotextile is a new type of geotextile that combines mechanical reinforcement and functional protection by compounding high-strength fiberglass grid with geotextile.
Enhanced mechanical properties
1. Improved tensile strength
The high strength of the fiberglass grid (tensile strength 65-100KN) combined with the flexibility of the geotextile significantly improves the overall tensile capacity of the composite material and can withstand greater loads. For example, in asphalt pavement, the grid limits aggregate displacement and reduces rutting and fatigue cracking.
2. Anti-deformation and anti-cracking
The low elongation of the fiberglass grid (<3%) combined with the buffering effect of the geotextile can disperse stress and delay the expansion of reflective cracks. In the reconstruction of old roads, it can reduce the reflection of base cracks to the road surface.
Functional protection optimization
1. Drainage and anti-filtration
The permeability of geotextiles is combined with the mesh structure of the grid to enhance drainage efficiency and prevent water damage. For example, in retaining walls or dam projects, composite materials can isolate soil particles to avoid pore blockage.
2. Isolation and protection
The isolation function of geotextiles and the reinforcement of the grid work together to prevent mixing of different soil layers or surface erosion. It is suitable for scenarios such as roadbed reinforcement and landfill slope protection.
Construction and economic advantages
1. Simplify the construction process
Composite materials can be directly pasted or anchored, reducing the process of layered laying of traditional geotextiles and grids, saving time and cost.
2. Extend the life of the project
The corrosion resistance of glass fiber (inorganic material) combined with the weather resistance of geotextiles makes the composite material life more than 20 years, reducing the frequency of later maintenance.
Typical application scenarios
1. Road engineering
- Asphalt pavement enhancement: reduce cracks and rutting, extend service life.
- Old road reconstruction: suppress reflective cracks and improve bearing capacity.
2. Slope and protection engineering
- Retaining wall, river bank protection: enhance soil stability and prevent landslides.
3. Environmental protection engineering
- Landfill: isolate pollutants, drain and consolidate.
